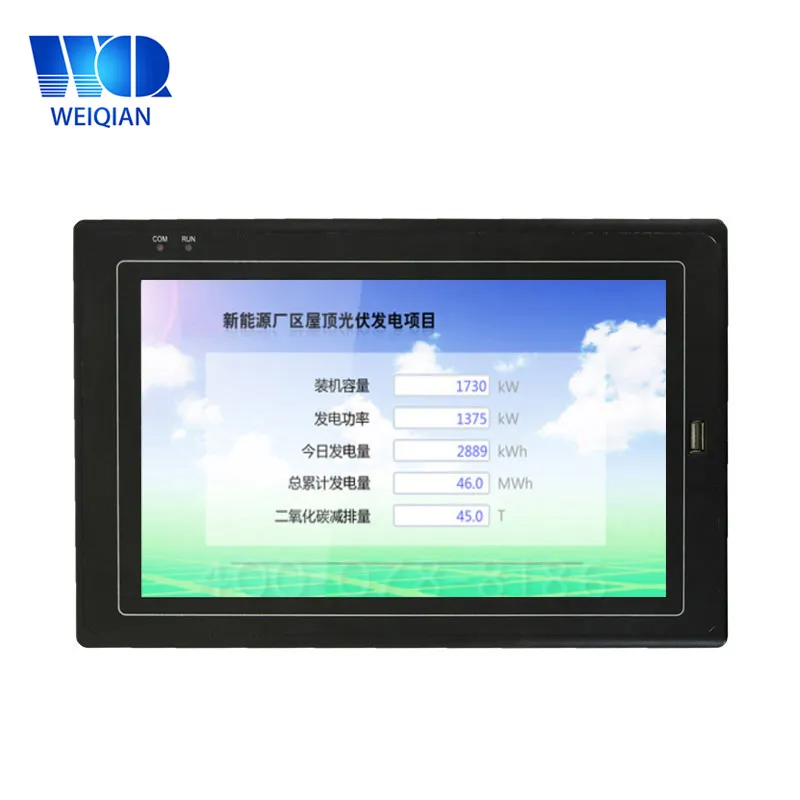

Industrial Mini Panel PC 10.4 Inch Linux System Embedded Machine

Basic Info

Model NO.	WLX-102R-AP20
Power Supply Type	DC 12V~24V
Shell Material	Plastic
CPU	Quad-Core Cortex A9 Architecturecortex -A8 Archite
Memory	512MB DDR3
Resolution	800X480
Flash	256MB Nandflash
Screen Type	4-Wire Resistance
Screen Defend Degree	IP65 (Front Panel)
Operating System	Linux
Certification	CE Certificate
Customize	OEM/ODM
Frequency	1.0GHz
Warranty	1 Year
Transport Package	1PC/ OPP Bag/ Carton Box
Specification	33*22*7.5CM
Trademark	WQ/OEM
Origin	Guangdong Province, China
HS Code	8473309000
Production Capacity	100000PCS/Year

Product Description

Industrial mini Panel PC 10.4 inch linux system embedded machine



Industrial mini Panel PC 10.4 inch linux system embedded machine



1. Parameter

Product model	WLX-102R-AP20
Basic parameters	CPU: Cortex -A8 architecture,frequency 1.0GHZ Memory: 512MB DDR3 Flash:256MB NandFlash
Display screen	Size:10.2 inch Resolution:800×480 Wide-temperature type,64K colors or 260K colors LED backlight:lifetime > 25000 hours
Touch screen	4-wire resistance touch screen
Hardware interface	4 channel 3-wire RS-232 serial port(COM1,COM2,COM3,COM4),2 channel(COM1,COM2)multiplex as RS-485 bus. Serial port with isolated model (optional). 1 channel isolated CAN bus.(optional). 1 channel USB device interface. 2 channel USB Host interface,support usual USB device such as mouse, keyboard, U disk ,etc. 1 channel 100M Ethernet interface. 1 channel SD/MMC slot. 1 channel 3.5mm audio output interface. 1 channel WIFI module inside.(optional) 1 channel DC 12V~24V,industrial power solution,higher reliability.
Attention	When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.
OS	Linux
Defend degree	IP65 (front panel)
Working environment	power:DC 12V-24V 700mA working temperature:-10~60ºC storage temperature:-20~80ºC working humidity:10~90%RH
Size	shell structure:plastic power:DC 12V-24V (24V as recommendation) panel size:275.00×181.00 (mm) trepanning size:266.00×171 .00 (mm)
Application area	industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application. Support CAN bus network deployment.
Software support	Flash power-down protection function. Support Eclipse, QT Creator, Arm linux gcc/g++ compiler, shell programming, STL library, Python2.7 development, support JAVA/C/C++/C# ,etc . Easy change the user-defined splash screen. Support display screen rotation (degree: 0/90/180/270)



Interface definition

1. CANL	2. CANH
3. GND	4. COM3-RX of RS-232
5. COM3-TX of RS-232	6. COM4-RX of RS-232
7. COM4-TX of RS-232	8. COM2-485B
9. COM2-485A	10. GND
11. COM1-485B	12. COM1-485A

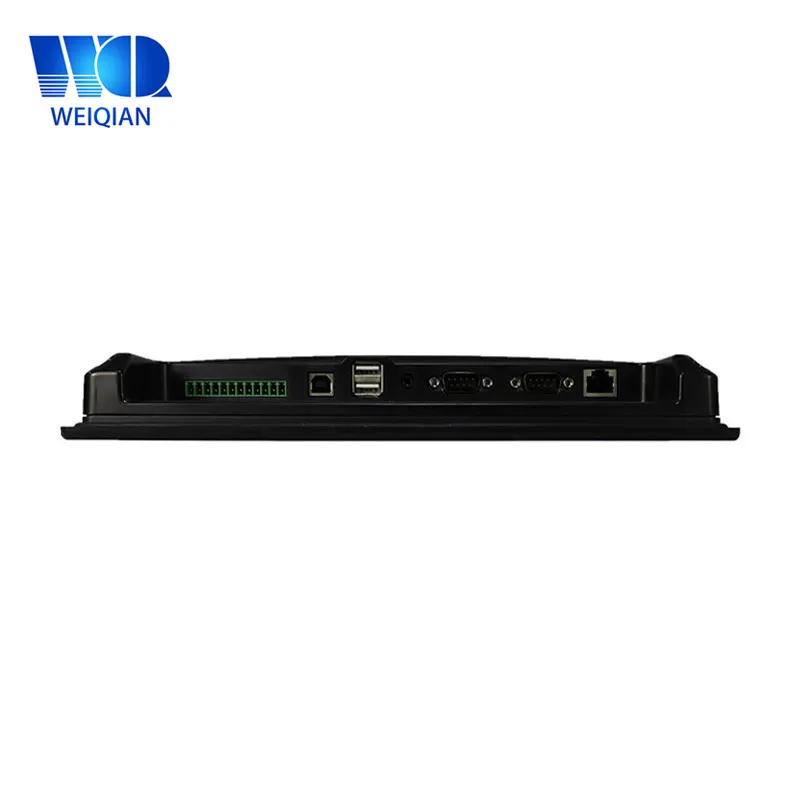

1. USB slave interface(USB Device)	2. USB Host interface (USB host)
3. Stereo audio interface	4. RS-232 interface ( COM1 ,COM2) ( isolated )
5. 100M Ethernet interface

2.1 RS-232 interface4 channels,support the highest-level baudrate 115200bps. The corresponding interface in Linux system is COM1 ~ COM4. 2.2 RS-485 interfaceThe corresponding port in Linux system is COM1,COM2. And COM1/COM2 is a multiplexing of RS-232 interface. 2.3 CAN Bus interfaceThe function of Can-bus interface is optional . Also, without terminal resistance inside ,pls specify once in need. 2.4 Power interface

3. Exterior size

Exterior size:275x181x42 (mm) Trepanning size:266 x171 (mm)



Transport and Packing process
Express (UPS,DHL,Fedex,EMS,etc) is available.
Sea and Air delivery is available.

Delivery Time
Samples: 1-5 working days
100PCS or More orders: 10-20 working days



Embedded industrial tablet PC 10.2 inch
Our service:
1. We guarantee that all products have been checked and packaged in good condition before dispatch. We strive for 100% customer satisfaction on every sale we complete.

2. Our products are direct from own factory, there is no middle man, no high markup, so we can provide quality items for a very competitive price.

3. Whether you are not satisfied with our products and services or you have any other questions, Please contact us at first time. We will respond you at 24 hours.

Warranty conditions

1.All products have 1 year warranty, no artificially damaged.
2.If there are some problems with the goods, the buyer needs to supply related documents (Photos, video etc) or damage to the original spare parts to old change new. Please contact the seller before you disassemble machines. please note, we will be not responsible for the goods you disassemble any goods without the seller's permit.

10.2 Inch Industrial Tablet Computer
FAQ
Q: whether your industrial panel pc support the OEM / ODM?
A: Yes, our industrial panel PC support the customization with size, function, appearance, resolution, high brightness and etc.

Q: Where is your panel pc / Tablet pc apply?
A: Restaruant, Advertisement, Gaming, Medical Equipment, kiosk, ATM, Industrial autamation, Supermarket chain stores, industrial control,detection device,instruments and meters,security monitoring, intelligent terminals embedded high-end application,etc .


Q: What is the main size for your panel pc and industrial monitor?
A: 7",8", 10.1", 10.4",11.6", 12", 13.3" 15", 15.6", 17" 19" 21.5" 22" and wide screen the same zise. We also support the customized.

Q: Can we printing our logo on the housing? What is MOQ?
A: Except the opening logo, we can do the silk-printing LOGO in the case. MOQ is 200pcs .

Q: What kind of inspection you can provide?
A: Weiqian has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment.

Q: What is your guarantee period?
A: 1 Years Quality Quarantee !
